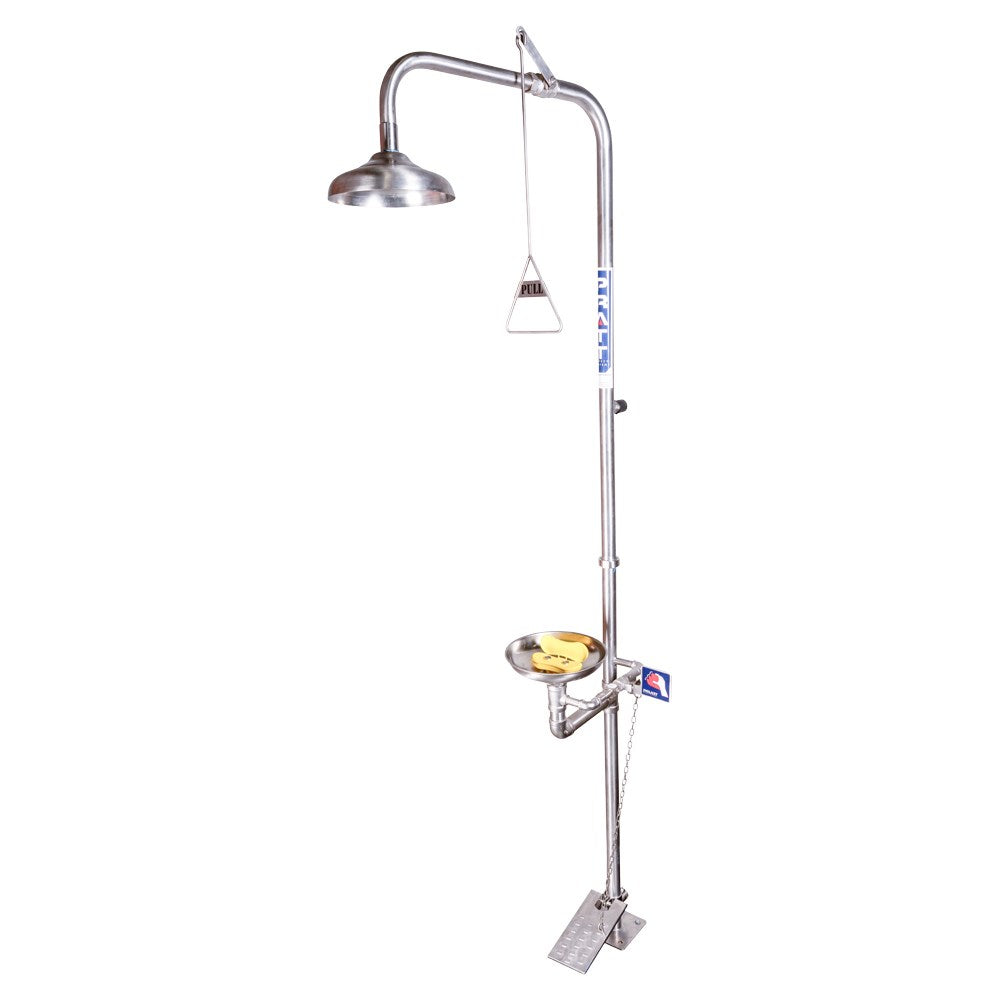

Combination Shower and Eye/Face Wash station constructed in 316 stainless steel specifically for harsh Australian conditions. This high grade stainless steel model provides greater corrosion resistance and durability for marine and harsh chemical environments.
All of the following components are made pf 316 stainless steel:
Shower stanchion (including base plate, barrel union & threaded connections)
Eyewash bowl assembly including mounting socket for spray head assembly
Dual eye/face wash spray head assembly
Shower arm & Manifold T-Junction
Pull rod & Push Handle
Foot treadle assembly with chain.
Eye/ Face Wash base assembly including flow control
The triple AEROSTREAM Eye/ Face Wash nozzles assembly retained in AES plastic. The braided connection hoses are made of 304 Stainless Steel.
Operation: Shower by hand, Eyewash by hand or foot.
Dimension (mm): 2450H x 470W x 883D mm
Rec Min Connection: 25mm
Rec Min Supply: 140-150 LPM
Shower Flow Rate: 90 LPM
Eye Wash Flow Rate: 30 LPM
Mini
